Product Summary

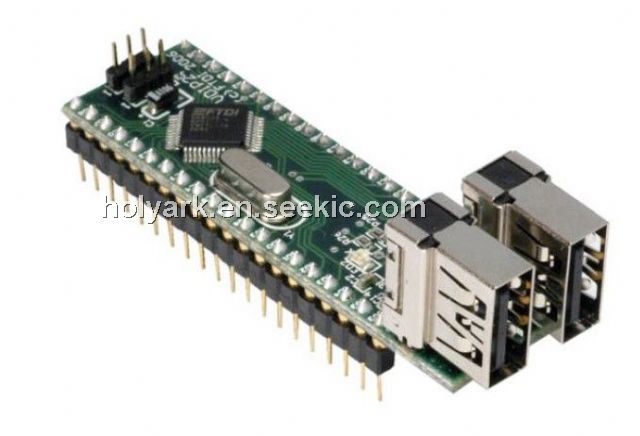

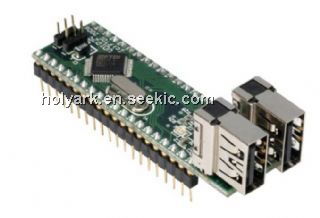

The VDIP2 module is an MCU to embedded USB host controller development module for the VNC1L I.C. device.
The VDIP2 is supplied on a PCB designed to fit into a 40 pin DIP socket, and provides access to the UART, parallel
FIFO, and SPI interface pins on the VNC1L device, via its AD and AC bus pins. All other Vinculum I/O pins are also
accessable.

Features

Uses F.T.D.I.’s VNC1L embedded USB host controller I.C. device.
? Two vertically mounted USB ‘A’ type socket to interface with USB peripheral devices
? Jumper selectable UART, parallel FIFO, or SPI MCU interfaces.
? Single 5V supply input.
? Auxiliary 3.3 V / 200 mA power output to external logic.
? Power and traffic indicator LED’s.
? Program or update firmware via USB Flash disk or via UART interface.
? VNC1L firmware programming control pins PROG# and RESET# brought out onto jumper interface
? VDIP2 is a Pb-free, RoHS complaint development module.
? VDIP2 module is supplied pre-loaded with Vinculum VDAP firmware.
? Schematics, and firmware files available for download from the Vinculum website.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VDIP2
VDIP2
FTDI
Interface Development Tools USB Vinculum Dev Module 2 USB Ports
Data Sheet
0-1: $17.70
1-10: $16.23
10-50: $15.18
50-100: $14.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VDIP1
VDIP1
FTDI
Interface Development Tools USB Vinculum Dev Module 1 USB Port
Data Sheet
0-1: $14.70
1-10: $13.23
10-50: $12.18
50-100: $11.10
VDIP2
VDIP2
FTDI
Interface Development Tools USB Vinculum Dev Module 2 USB Ports
Data Sheet
0-1: $17.70
1-10: $16.23
10-50: $15.18
50-100: $14.10
