Product Summary

The PIC16C711-04I/P is a low-cost, high-performance, CMOS, fully-static, 8-bit microcontroller with integrated analog-to-digital (A/D) converters. The PIC16C711-04I/P microcontroller has enhanced core features, eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches which require two cycles.

Parametrics

PIC16C711-04I/P absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +14V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA: 200 mA; (15)Maximum current sourced by PORTA: 200 mA; (16)Maximum current sunk by PORTB: 200 mA; (17)Maximum current sourced by PORTB: 200 mA.

Features

PIC16C711-04I/P features: (1)High-performance RISC CPU; (2)Only 35 single word instructions to learn; (3)All single cycle instructions except for program branches which are two cycle; (4)Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle; (5)Up to 2K x 14 words of Program Memory, up to 128 x 8 bytes of Data Memory (RAM); (6)Interrupt capability; (7)Eight level deep hardware stack; (8)Direct, indirect, and relative addressing modes; (9)Power-on Reset (POR); (10)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (11)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (12)Programmable code-protection; (13)Power saving SLEEP mode; (14)Selectable oscillator options; (15)Low-power, high-speed CMOS EPROM technology; (16)Fully static design.

Diagrams

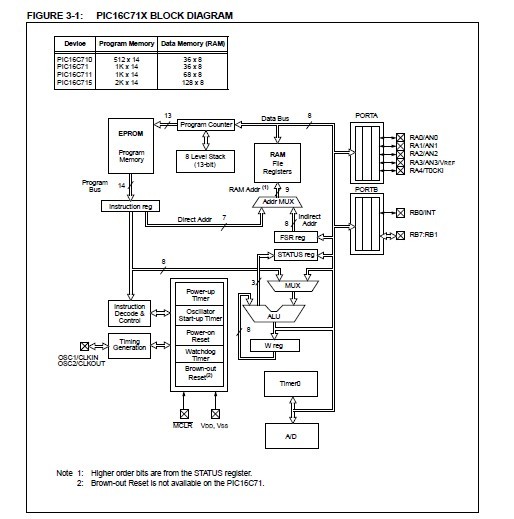

PIC16C711-04I/P BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

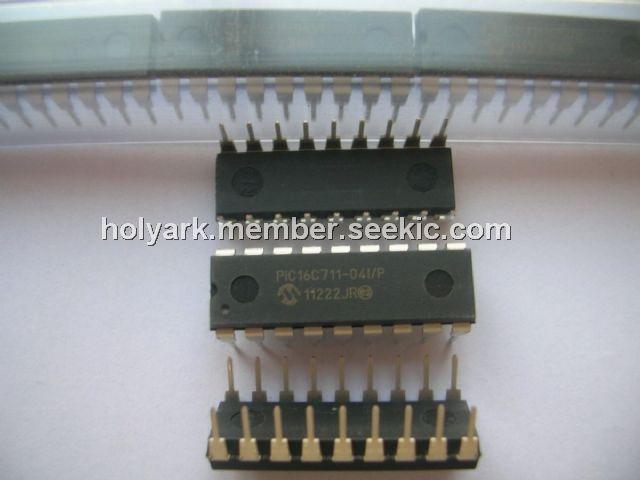

PIC16C711-04I/P
PIC16C711-04I/P

Microchip Technology

8-bit Microcontrollers (MCU) 1.75KB 68 RAM 13 I/O 4MHz Ind Temp PDIP18

Data Sheet

0-1: $1.97
1-10: $1.58
10-25: $1.52
25-100: $1.46
