Product Summary

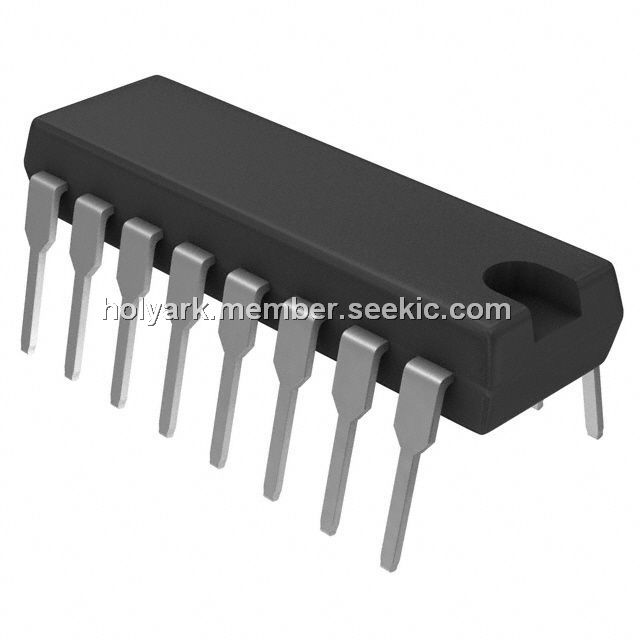

The SN74HC153N is dual four-line to one-line data selectors and multiplexers. It has a wide operating voltage range from 2V to 6V. Each of these data selectors/multiplexers contains inverters and drivers to supply full binary decoding data selection to the AND-OR gates. Separate strobe (G) inputs are provided for each of the two 4-line sections.
Parametrics
Absolute maximum ratings:(1)Supply voltage range, VCC: ?0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA, D package: 73°C/W; (7)Package thermal impedance, θJA, N package: 67°C/W; (8)Package thermal impedance, θJA, NS package: 64°C/W; (9)Package thermal impedance, θJA, PW package: 108°C/W; (10)Storage temperature range, Tstg: ?65°C to 150°C.
Features
Features:(1)Wide Operating Voltage Range of 2V to 6V; (2)Outputs Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 9 ns; (5)±6-mA Output Drive at 5V; (6)Low Input Current of 1 μA Max; (7)Permit Multiplexing from n Lines to One Line; (8)Perform Parallel-to-Serial Conversion; (9)Strobe (Enable) Line Provided for Cascading (N Lines to n Lines).

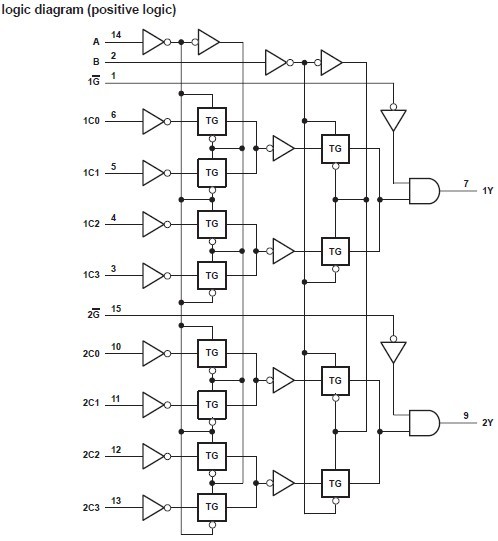

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC153N |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Dual Line |
Data Sheet |
|
|
||||||||||||
|
SN74HC153NE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
Data Sheet |
|
|
||||||||||||
|
SN74HC153NSR |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
Data Sheet |
|
|
||||||||||||
|
SN74HC153NSRG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Dual 4Ln To 1Ln Data Selector Multiplexer |
Data Sheet |
|
|
||||||||||||
|
SN74HC153NSRE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
Data Sheet |
|
|
||||||||||||
