Product Summary

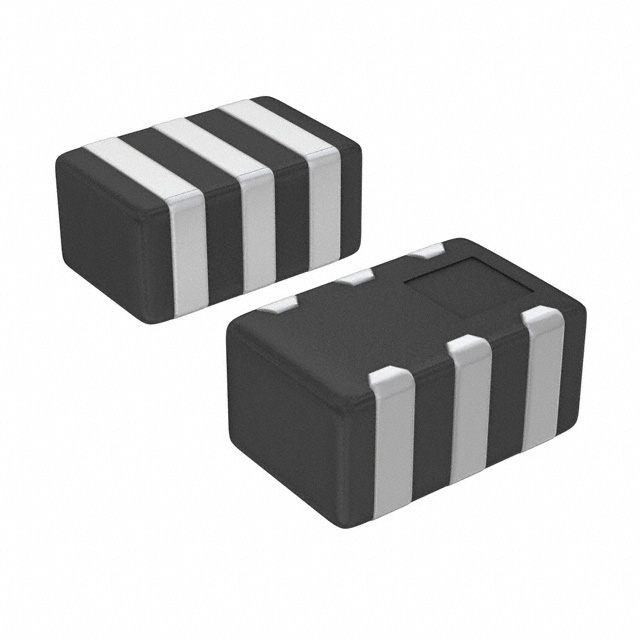

The HHM1595A1 is a kind multilayer chip Balun for UWB. Some specifications of this device are as follows: (1)Category: RF/IF and RFID; (2)Family: Balun; (3)Series: HHM; (4)Frequency Range: 3 ~ 8GHz; (5)Impedance - Unbalanced/Balanced: 50 / 100 Ohm; (6)Phase Difference: 180°±20; (7)Insertion Loss (Max): 1.5dB; (8)Return Loss (Min): 8dB; (9)Package / Case: 0805 (2012 Metric); (10)Mounting Type: Surface Mount ; (11)Packaging: Tape & Reel (TR).
Parametrics
Electrical characteristics: (1)Unbalanced impedance: 50Ω; (2)Balanced impedance: 100; (3)Frequency range: 3000 to 8000MHz; (4)Unbalanced port return loss: 8.0dB min; (5)Phase imbalance at balanced port: 180±20deg; (6)Amplitude imbalance at balanced port: 0±2.5dB; (7)Insertion loss: 1.5dB max; (8)Temperature range: Operating: –40 to +85°C; Storage: –40 to +85°C; (9)Packaging style and quantities: 2000pieces/reel.
Features
Features: (1)Frequency Range: 3 ~ 8GHz; (2)Impedance - Unbalanced/Balanced: 50 / 100 Ohm; (3)Phase Difference: 180° ±20; (4)Insertion Loss (Max): 1.5dB; (5)Return Loss (Min): 8dB.

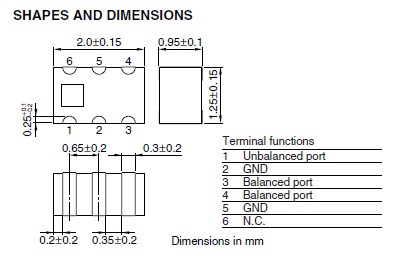

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HHM1595A1 |
TDK |
Signal Conditioning 50/100ohm 3-8GHz Ultrawideband Balun |
Data Sheet |
|
|
||||||||||||||||
