Product Summary

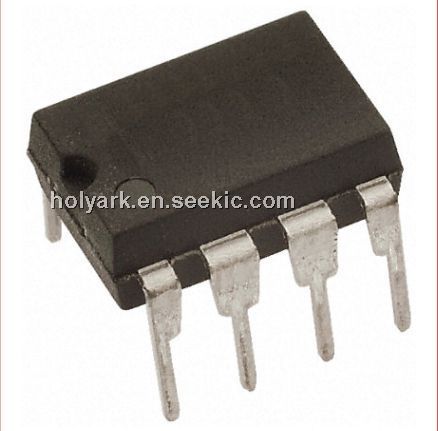

The VIPER22ADIP-E is a dedicated current mode PWM controller with a high
voltage power mosfet on the same silicon chip.
1)Home appliances and power tools
2)LED and general lighting
3)Motor control
4)Process control and automation
Parametrics
Rise time 50ns
Fall Time 100ns
Typical Operating Supply Voltage 0 → 50 V
Through Hole
Width of 7.11mm
Package Type DIP
Dimensions 10.16 x 7.11 x 4.95mm
Number of Pins 8
Topology forward
Current control methods
Minimum Operating Temperature -40 ° C
The maximum duty cycle of 16%
Maximum operating temperature +150 ° C
Maximum switching frequency 60kHz
Output voltage 730 V
Length 10.16mm
Height 4.95mm
Features
Features:
1)Fixed 60 kHz switching frequency
2)9 V to 38 V wide range VDD voltage
3)Current mode control
4)Auxiliary undervoltage lockout with hysteresis
5)High voltage start-up current source
6)Overtemperature, overcurrent and overvoltage protection with auto-restart
