Product Summary

Manufacturer: Freescale Semiconductor


Product Type: 16-bit microcontrollers - MCU


RoHS: RoHS Compliant Details


Core: HCS12


Data Bus Width: 16 bit


Maximum clock frequency: 50 MHz


Program Memory Size: 512000 B


Data RAM Size: 12288 B


The on-chip ADC: Yes


Operating Supply Voltage: 2.5 V, 5 V


Maximum Operating Temperature: + 125 C


Package / Case: LQFP-112


Mounting Style: SMD / SMT


A / D Bit Size: 10 bit, 10 bit


Available A / D channels: 8, 8


Data ROM Size: 4 KB


Interface Type: B, CAN 2.0A, IIC, J1850, SCI, SPI


Minimum Operating Temperature: - 40 C


Programmable input / output number: 91


Timers: 8


Packaging: Tray


Processor Series: S12D


Program Memory Type: EEPROM


Series: S12D


Factory Pack Quantity: 300


Unit Weight: 1.278 g

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

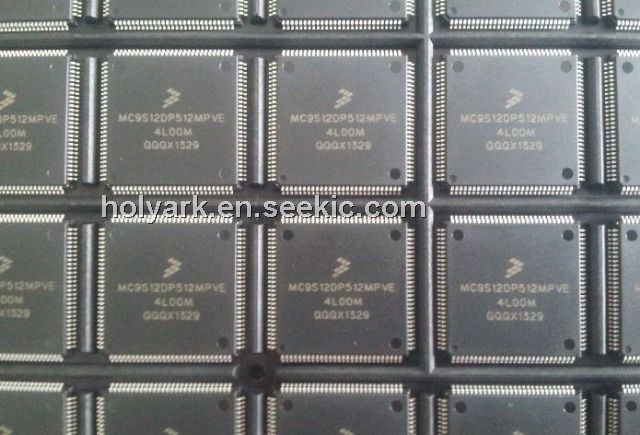

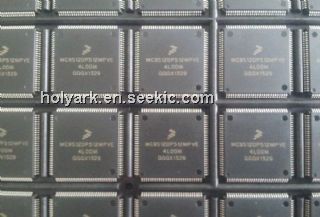

MC9S12DP512MPVE
MC9S12DP512MPVE
Freescale Semiconductor
16-bit Microcontrollers (MCU) 16 Bit 25MHz
Data Sheet
0-1: $16.01
1-25: $14.47
25-50: $12.38
50-100: $10.03
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08AC128CFGE
MC9S08AC128CFGE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.56
1-25: $2.32
25-50: $1.99
50-100: $1.61
MC9S08AC128CFUE
MC9S08AC128CFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.75
1-25: $2.48
25-50: $2.13
50-100: $1.73
MC9S08AC128CLKE
MC9S08AC128CLKE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.77
1-25: $2.51
25-50: $2.14
50-100: $1.74
MC9S08AC128MLKE
MC9S08AC128MLKE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH, 8K RAM
Data Sheet
0-1: $3.25
1-25: $3.06
25-100: $1.91
MC9S08AC128MFGE
MC9S08AC128MFGE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH, 8K RAM
Data Sheet
0-1: $3.00
1-25: $2.83
25-100: $1.77
MC9S08AC128MFUE
MC9S08AC128MFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH 8K RAM
Data Sheet
0-1: $3.20
1-25: $3.02
25-100: $1.89
