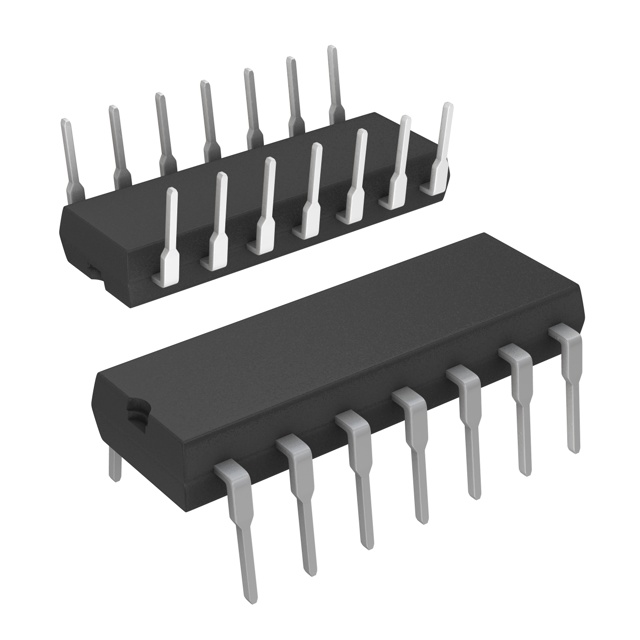

PIC16C505-04I/P

8-bit, fully static, EPROM/ ROM-based CMOS microcontroller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.45

PartNumber:: PIC16C505-04I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-01

From Other Seller

Part Number:PIC16C505-04I/P
US $1.80 - 2.45
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16C505-04I/P is a kind of a low cost, high performance, 8-bit, fully static, EPROM/ ROM-based CMOS microcontroller. It adopts a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1ms) except for program branches which take two cycles. All instructions are single cycle (1 ms) except for program branches which take two cycles. The device is available in the cost-effective One-Time-Programmable (OTP) version, which is suitable for production in any volume. In addition, the device is supported by a full-featured macro assembler, a software simulator, an in-circuit emulator, a C compiler, a low-cost development programmer, and a full featured programmer.

Parametrics

Absolute maximum ratings: (1)Ambient Temperature under bias: –40℃ to +125℃ ; (2)Storage Temperature: –65℃ to +150℃ ; (3)Voltage on VDD with respect to VSS: 0 to +7.5 V; (4)Voltage on MCLR with respect to VSS: 0 to +14 V; (5)Voltage on all other pins with respect to VSS: –0.6 V to (VDD + 0.6 V); (6)Total Power Dissipation: 700 mW; (7)Max. Current out of VSS pin: 200 mA; (8)Max. Current into VDD pin: 150 mA; (9)Input Clamp Current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output Clamp Current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Max. Output Current sunk by any I/O pin: 25 mA; (12)Max. Output Current sourced by any I/O pin: 25 mA; (13)Max. Output Current sourced by I/O port: 100 mA; (14)Max. Output Current sunk by I/O port: 100 mA.

Features

Features: (1)In-Circuit Serial Programming (ICSP); (2)Power-on Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with dedicated on-chip; (5)RC oscillator for reliable operation; (6)Programmable Code Protection; (7)Internal weak pull-ups on I/O pins; (8)Wake-up from Sleep on pin change; (9)Power-saving Sleep mode; (10)Selectable oscillator options: INTRC: Precision internal 4 MHz oscillator; EXTRC: External low-cost RC oscillator; XT: Standard crystal/resonator; HS: High speed crystal/resonator; LP: Power saving, low frequency crystal.
