Product Summary

The MC56F8347MPYE device is 16-bit motor-control chips based on the 56800E core. These parts use a Harvard-style architecture with two independent memory spaces for Data and Program. On-chip RAM and Flash memories are used in both spaces.

Parametrics

Absolute maximum ratings:(1)Supply Voltage, VDD_IO: -0.3 to 4.0V; (2)ADC Supply Voltage, VDDA_ADC VREFH: -0.3 to 4.0V; (3)Oscillator/PLL Supply Voltage, VDDA_OSC_PLL: -0.3 to 4.0V; (4)Internal Logic Core Supply Voltage, VDD_CORE: -0.3 to 3.0V; (5)Input Voltage (digital), VIN: -0.3 to 6.0V; (6)Input Voltage (analog), VINA: -0.3 to 4.0V; (7)Output Voltage, VOUT: -0.3 to 4.0V; (8)Output Voltage (open drain), VOD: -0.3 to 6.0V; (9)Ambient Temperature (Automotive), TA: -40 to 125℃; (10)Ambient Temperature (Industrial), TA: -40 to 105℃; (11)Junction Temperature (Automotive), TJ: -40 to 150℃; (12)Junction Temperature (Industrial), TJ: -40 to 125℃; (13)Storage Temperature (Automotive), TSTG: -55 to 150℃; (14)Storage Temperature (Industrial), TSTG: -55 to 150℃.

Features

Features:(1)Flash security feature prevents unauthorized access to code/data contained in on-chip Flash memory; (2)Power-saving clock gating for peripheral; (3)Three power modes (Run, Wait, Stop) to control power utilization; (4)Controls to enable/disable the 56800E core WAIT and STOP instructions; (5)Calculates base delay for reset extension based upon POR or RESET operations; (6)Reset delay will be either; (7)3 x 32 clocks for reset, except for POR, which is 2^21 clock cycles.; (8)Controls reset sequencing after reset; (9)Software-initiated reset; (10)Four 16-bit registers reset only by a Power-On Reset usable for general-purpose software control; (11)System Control Register; (12)Registers for software access to the JTAG ID of the chip.

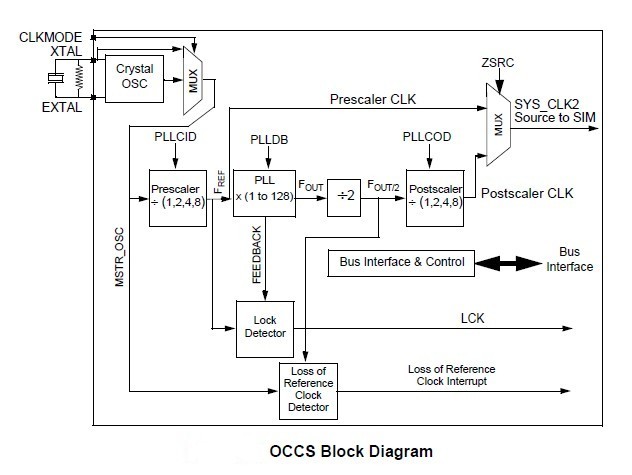

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

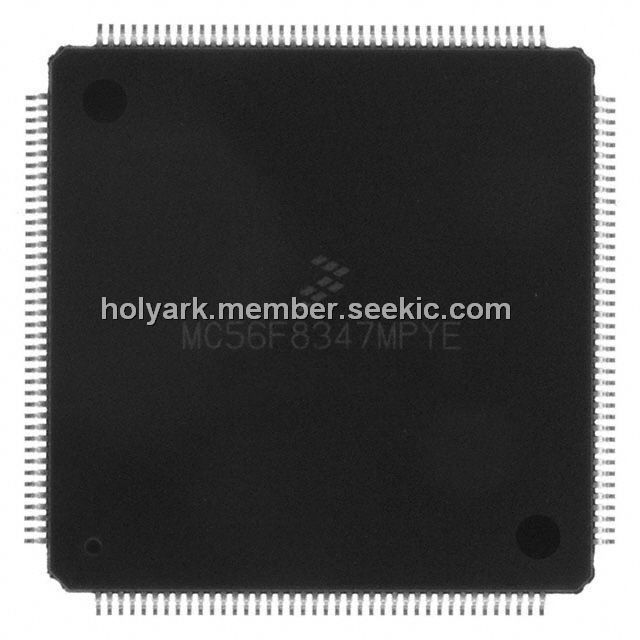

MC56F8347MPYE
MC56F8347MPYE

Freescale Semiconductor

Digital Signal Processors & Controllers (DSP, DSC) 16 BIT HYBRID CONTROLLER

Data Sheet

0-1: $12.67
1-25: $11.10
25-50: $9.39
50-100: $7.69
