Product Summary

The BCX19T116 is a kind of NPN small signal transistor. It is designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). The package type is taping and the code is T116. The basic ordering unit is 3000 pieces.

Parametrics

Absolute maximum ratings (Ta=25℃): (1)Collector-emitter voltage (VBE=0), VCES: 50 V; (2)Collector-emitter voltage (open base), VCEO: 45 V; (3)Emitter-base voltage, VEBO: 5 V; (4)Collector current, IC: 0.5 A; (5)Collector current (peak value), ICM: 1 A; (6)Collector power dissipation, PC: 0.2 W; 0.35 W when mounted on a 7×5×0.6 mm CERAMIC SUBSTRATE; 0.425 W when mounted on a 15×15×0.6 mm CERAMIC SUBSTRATE; (7)Junction temperature, Tj: 150℃; (8)Storage temperature, Tstg: -65 to 150℃.

Features

Features: (1) High gain and low saturation voltage; (2) Complements the BCX17.

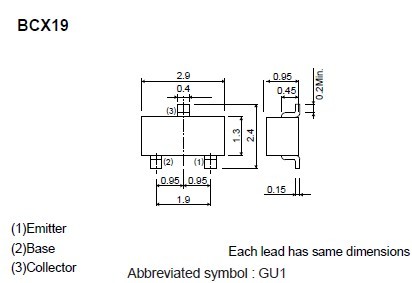

Diagrams

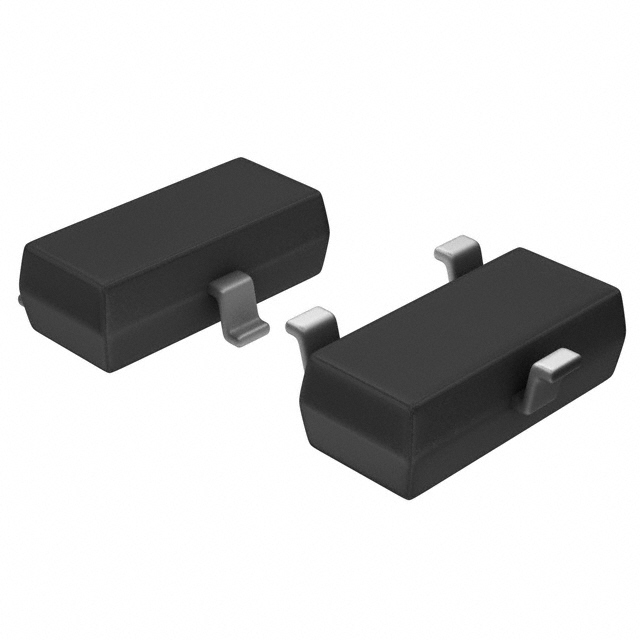

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BCX19T116
BCX19T116
ROHM Semiconductor
Transistors Bipolar (BJT) NPN 45V 500MA
Data Sheet
0-1: $0.27
1-25: $0.20
25-100: $0.14
100-250: $0.11
