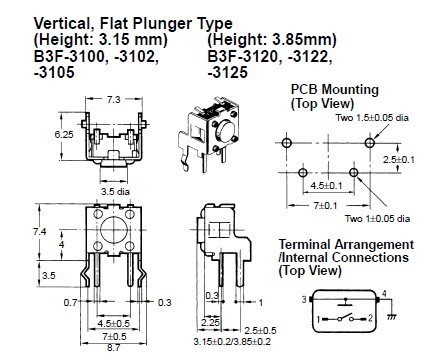

B3F-3125

Flat, 3.85 mm, Operating force (OF) 2.55 N (260 gf)

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.36~0.47 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.36~0.47

PartNumber:: B3F-3125

Brand:: Omron Electronics LLC - OMRON | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-31

From Other Seller

Part Number:B3F-3125
US $0.36 - 0.47
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
G4PC40W

US $2.50 - 4.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The B3F-3125 is a mechanical key switch from Omron. There are many kinds of models such as 6 x 6 mm, 12 x 12 mm, Vertical and High-force. It is featured with excellent tactile feel combined with high life expectancy and pushbuttons available in nine colors. It is available in stick packaging for automatic mounting to PCBs.

Parametrics

Absolute maximum ratings:(1)Switching capacity: 5 to 24 VDC, 1 to 50 mA (resistive load); (2)Insulation voltage: 30 VDC; (3)Contact form: SPST-NO; (4)Contact resistance: 100 mW max. (at 5 VDC, 1 mA; initial value.); (5)Insulation resistance: 100 MW min. (at 250 VDC); (6)Dielectric strength: 500 VAC, 50/60 Hz for 1 min; (7)Bounce time: 5 ms max; (8)Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude.

Features

Features:(1)A Wide Range of Models: 6 x 6 mm, 12 x 12 mm, Vertical and High-force; (2)Excellent tactile feel combined with high life expectancy; (3)Available in stick packaging for automatic mounting to PCBs; (4)Up to 2.55 N (260-gf) operating force for a firmer operating touch; (5)Pushbuttons available in nine colors.
