Product Summary

PWM resolution of 16 bit, 8 bit
Number of PWM unit 3
PWM channel 2
Size 4 kB RAM
USB channel 0
Typical Operating Supply Voltage 4.5 → 5.5 V
Surface Mount
Width 14.1mm

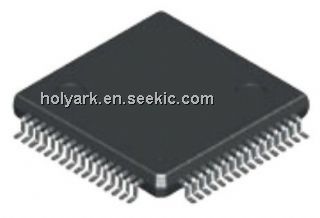

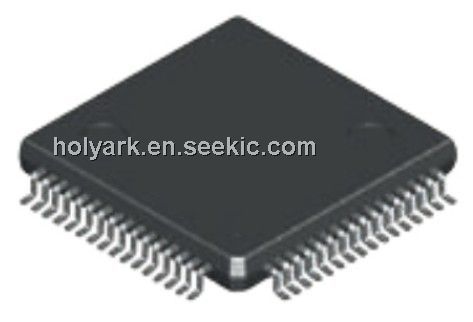

Package Type TQFP
Dimensions 14.1 x 14.1 x 1.05mm
Pins 64
RISC instruction set architecture
Data Bus Width 8Bit
Minimum Operating Temperature -40 ° C
The maximum number of CAN channels 0
The maximum number of I2C channel 1
The maximum number of LIN channel 0
The maximum number of PCI channel 0
The maximum number of channels a SPI
The maximum number of UART channel 0
The maximum number of USART channel 2
The maximum number of Ethernet channel 0
Maximum operating temperature +85 ° C
The maximum frequency 16MHz
ADC 8 x 10 位
ADC resolution 10Bit
ADC number of units 1
ADC channel 8
Program memory size 128 kB, 4 kB
Program Memory Type Flash Memory
ATmega family name
Pulse width modulation 2 x 16 bits, 2 (2 x 8-bit)
Device Core AVR
Timers 1 x 16 位, 2 x 8 位
Timer resolution 16 bit, 8 bit
The number of timer 3
Length 14.1mm
Height 1.05mm
