Product Summary

The UPC8231TK is a silicon germanium carbon (SiGe:C) monolithic integrated circuit designed as low noise amplifier for GPS and mobile communications. The UPC8231TK exhibits low noise figure and high power gain characteristics. The UPC8231TK is enabled in the frequency range from 1.5 to 2.4 GHz by modifying the external matching circuit. The package is 6-pin lead-less minimold, suitable for surface mount. This IC is manufactured using our UHS4 (Ultra High Speed Process) SiGe:C bipolar process.

Parametrics

UPC8231TK absolute maximum ratings: (1)Supply Voltage, VCC, TA = +25℃: 4.0V; (2)Power-Saving Voltage, VPS, TA=+25℃: 4.0V; (3)Power Dissipation, PD, TA=+85℃: 232mW; (4)Operating Ambient Temperature, TA: -40 to +85℃; (5)Storage Temperature, Tstg: -55 to +150℃; (6)Input Power, Pin: +10dBm.

Features

UPC8231TK features: (1)Low noise: NF=0.8dB TYP. @ fin=1575 MHz; (2)High gain: GP=20dB TYP. @ fin=1575 MHz; (3)Low current consumption: ICC=3.8 mA TYP@ VCC=3.0V; (4)Built-in power-saving function; (5)High-density surface mounting: 6-pin lead-less minimold package; (6)Included very robust bandgap regulator; (7)Included protection circuits for ESD.

Diagrams

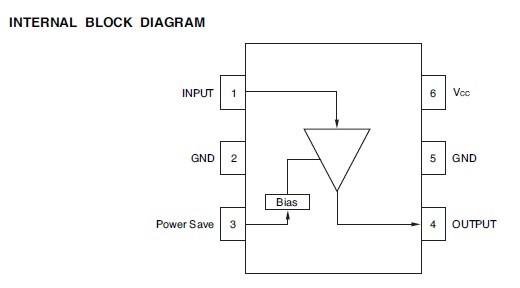

UPC8231TK INTERNAL BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPC8231TK-A
UPC8231TK-A
CEL
RF Amplifier LOW NOISE GPS AMP
Data Sheet
0-1: $0.71
1-10: $0.64
10-100: $0.55
100-500: $0.45

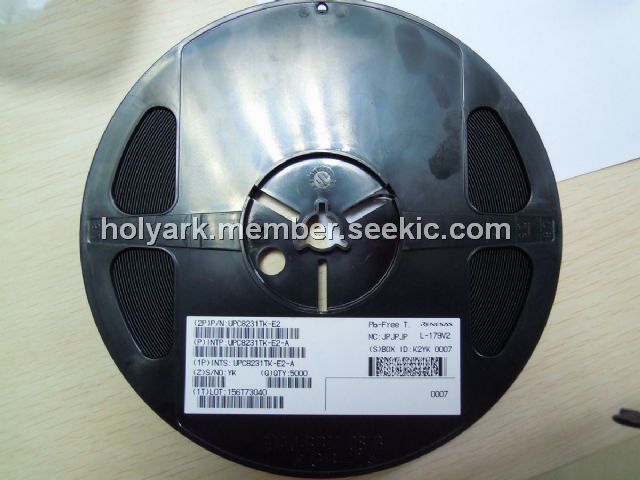

UPC8231TK-E2-A
UPC8231TK-E2-A
CEL
RF Amplifier LOW NOISE GPS AMP
Data Sheet
0-5000: $0.32
UPC8231TK-EVAL-A
UPC8231TK-EVAL-A
CEL
GPS Development Tools For UPC8231TK-A
Data Sheet
0-1: $78.41
1-2: $69.70
