Product Summary

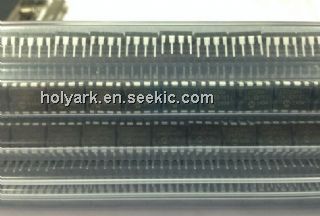

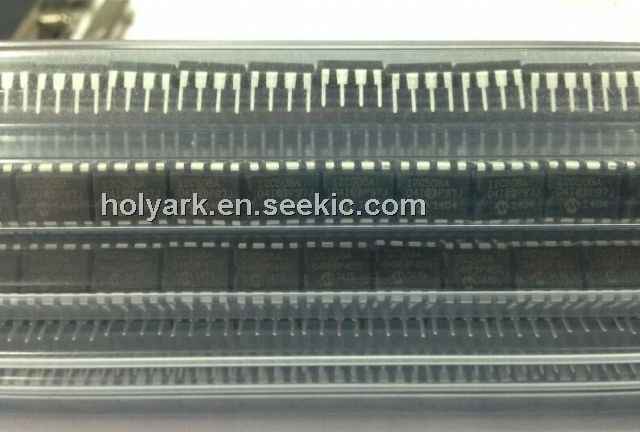

The PIC12C508A-04I/P is a low-cost, high performance, 8-bit, fully static,
 EEPROM/EPROM/ROM-based CMOS microcontroller. It employs a RISC architecture with only 33 single word/single
cycle instructions. All instructions are single cycle (1 ms) except for program branches which take two cycles.
The PIC12C508A-04I/P delivers performance an order of magnitude higher than its competitors in the same price category.
 The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit
microcontrollers in its class. The easy to use and easy to remember instruction set reduces development
time significantly.

Features

(1)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler;
(2)Power-On Reset (POR);
(3)Device Reset Timer (DRT);
(4)Watchdog Timer (WDT) with its own on-chip RCoscillator for reliable operation;
(5)Programmable code-protection;
(6)1,000,000 erase/write cycle EEPROM datamemory;
(7)EEPROM data retention > 40 years;
(8)Power saving SLEEP mode;
(9)Wake-up from SLEEP on pin change;
(10)Internal weak pull-ups on I/O pins;
(11)Internal pull-up on MCLR pin.
