Product Summary

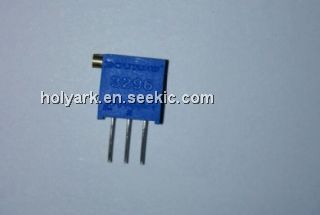

Product Photos 3296X Series
Standard Package 50
Category Potentiometers, Variable Resistors
Family Trimmer Potentiometers
Series Trimpot? 3296 - Sealed
Packaging Tube
Resistance (Ohms) 500
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension Rectangular - 0.395" x 0.190" Face x 0.395" H (10.03mm x 4.83mm x 10.03mm)

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3296X-1-501LF
3296X-1-501LF
Bourns
Trimmer Resistors - Through Hole 3/8" 500ohms Sealed Horizontal Adjust
Data Sheet
0-1: $1.50
1-10: $1.36
10-50: $1.17
50-100: $0.95
