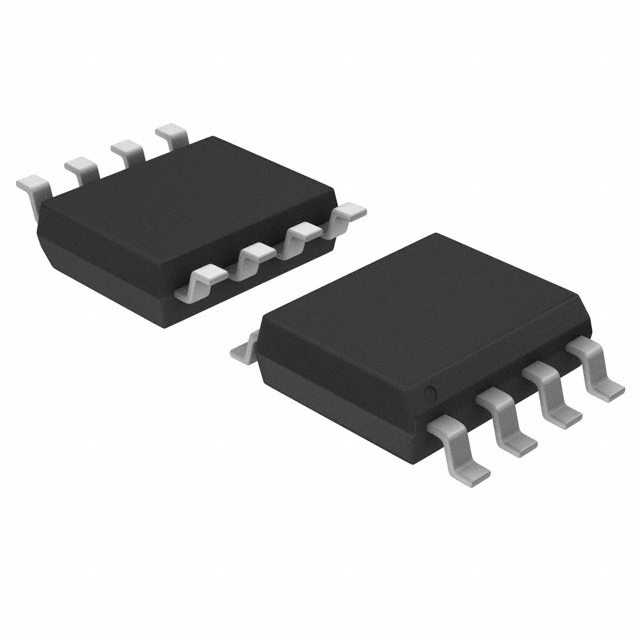

MAX4080SASA

high-side, current-sense amplifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~1.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.70~1.95

PartNumber:: MAX4080SASA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-10

From Other Seller

Part Number:MAX4080SASA
US $1.70 - 1.95
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

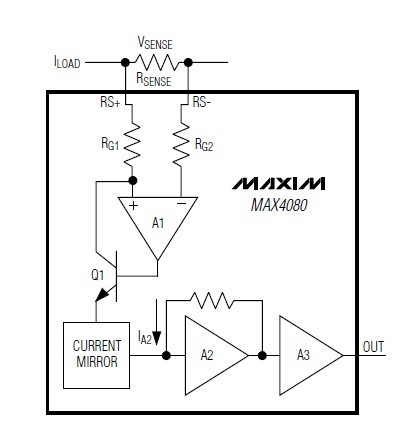

The MAX4080SASA is a kind of high-side, current-sense amplifier with an input voltage range that extends from 4.5V to 76V making them ideal for telecom, automotive, backplane, and other systems where high-voltage current monitoring is critical. It is designed for unidirectional current-sense applications. The device offers a high level of integration, resulting in a simple, accurate, and compact current-sense solution.

Parametrics

Absolute maximum ratings: (1)VCC to GND: -0.3V to +80V; (2)RS+, RS- to GND: -0.3V to +80V; (3)OUT to GND.-0.3V to the lesser of: +18V or (VCC + 0.3V); (4)Output Short Circuit to GND: Continuous; (5)Differential Input Voltage (VRS+ - VRS-): ±800V; (6)Current into Any Pin: ±20mA; (7)Continuous Power Dissipation (TA = +70℃:8-Pin μMAX (derate 4.5mW/℃ above +70℃: 362mW; 8-Pin SO (derate 5.88mW/℃ above +70℃: 471mW; (8)Operating Temperature Range: -40℃ to +125℃; (9)Junction Temperature: +150℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

Features: (1)Wide 4.5 V to 76 V Input Common-Mode Range; (2)Bidirectional or Unidirectional ISENSE; (3)Low-Cost, Compact, Current-Sense Solution; (4)Three Gain Versions Available: 5V/V (MAX4080F/ MAX4081F); ; (5)20V/V (MAX4080T/ MAX4081T); 60V/V (MAX4080S/ MAX4081S); (6)±0.1% Full-Scale Accuracy; (7)Low 100μV Input Offset Voltage; (8)Independent Operating Supply Voltage; (9)75μA Supply Current (MAX4080); (10)Available in a Space-Saving 8-Pin μMAX Package.
