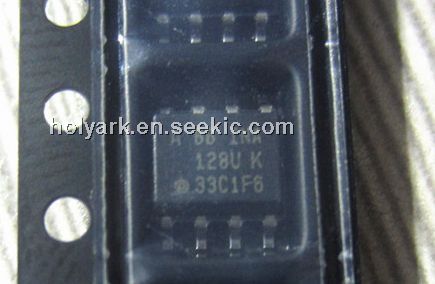

INA128U

INA128U
Texas Instruments
SP Amp INSTR Amp Single ±18V 8-Pin SOIC Tube

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	4.50 / Piece
50 ~ 100 :	4.00 / Piece

PartNumber:: INA128U

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 5000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Amanda's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2014-04-16

From Other Seller

Part Number:INA128U
US $4.00 - 4.50
Quantity:

piece

Product Summary

The INA128 is low power, general purpose instrumentation amplifiers offering excellent accuracy. The versatile 3-op amp design and small size make them ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200kHz at G = 100).

The INA128 is laser trimmed for very low offset voltage (50μV), drift (0.5μV/°C) and high common-mode rejection (120dB at G ≥ 100). It operates with power supplies as low as ±2.25V, and quiescent current is only 700μA—ideal for batteryoperated systems. Internal input protection can withstand up to ±40V without damage.
The INA128 is available in 8-pin plastic DIP and SO-8 surface-mount packages, specified for the –40°C to +85°C temperature range. The INA128 is also available in a dual configuration, the INA2128.

Features

Typical Dual Supply Voltage ± 15V
Surface Mount
Width of 3.91mm
Package Type SOIC
Dimensions 4.9 x 3.91 x 1.58mm
Number of Pins 8
Minimum Operating Temperature -40 ° C
Maximum input resistor value 100GΩ
The minimum CMRR 80dB
Maximum operating temperature +85 ° C
Power type double
No rail to rail
Length 4.9mm
Height 1.58mm
