Product Summary
The HGTG30N60A4D is a MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25℃ and 150℃. The IGBT used is the development type TA49343. The diode used in anti-parallel is the development type TA49373. This IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies.
Parametrics
Absolute maximum ratings: (1)Collector to Emitter Voltage, BVCES: 600V; (2)Collector Current Continuous At TC = 25℃: IC25 75A; (3)Collector Current Continuous At TC = 110℃: IC110 60A; (4)Collector Current Pulsed, ICM: 240A; (5)Gate to Emitter Voltage Continuous, VGES: ±20V; (6)Gate to Emitter Voltage Pulsed, VGEM: ±30V; (7)Switching Safe Operating Area at TJ = 150℃, SSOA: 150A at 600V; (8)Power Dissipation Total at TC = 25℃, PD: 463W; (9)Power Dissipation Derating TC > 25℃: 3.7W/℃; (10)Operating and Storage Junction Temperature Range, TJ, TSTG: -55 to 150℃; (11)Maximum Temperature for Soldering, TL: 260℃.
Features
Features: (1)>100kHz Operation At 390V, 30A; (2)200kHz Operation At 390V, 18A; (3)600V Switching SOA Capability; (4)Typical Fall Time: 60ns at TJ = 125℃; (5)Low Conduction Loss; (6)Temperature Compensating SABER Model.

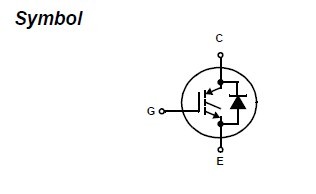

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

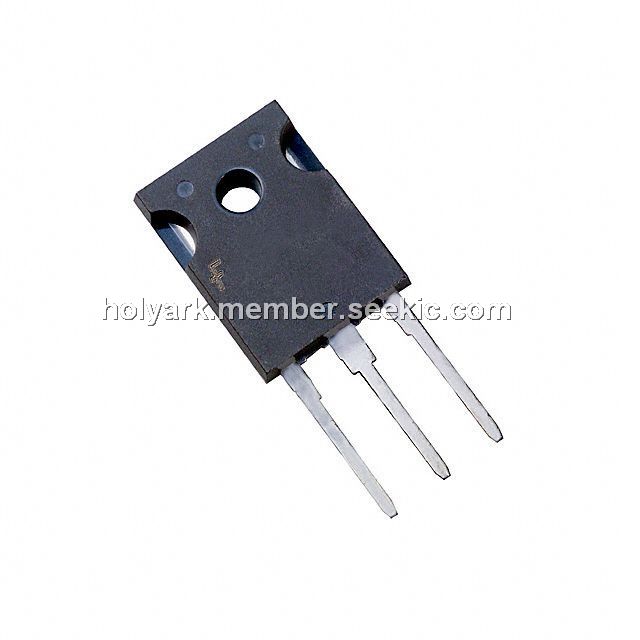

 HGTG30N60A4D |
Fairchild Semiconductor |
IGBT Transistors 600V N-Channel IGBT SMPS Series |
Data Sheet |
|
|
||||||||||||
