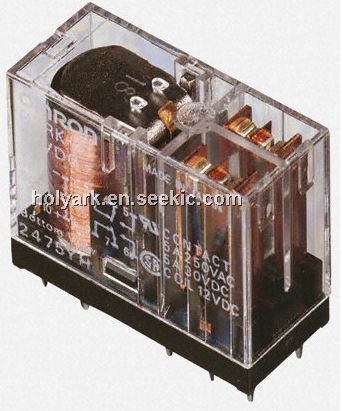

Product Summary

  Functional magnetic flux protective structure
  A printed circuit board mounting type
  Application Type Power
  Maximum switching power AC 750 VA
  Maximum switching power DC 90 W
  Maximum switching voltage AC 380V AC
  Maximum switching voltage DC 125V DC
  Maximum operating temperature +70 ° C
  Depth 13mm
  Through Hole Terminal
  Coil voltage 24V DC
  Coil resistance 694 (set coil) Ω, 960 (reset coil) Ω
  Contact Material Silver
  Contact Configuration DPDT
  Length 29mm
  Height 25.5mm

Features

1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV,
SEMKO.
 2)Meets VDE0700 requirements for household products according to VDE0110.
 3)Clearance and creepage distance: 8 mm/8 m.
 4)Models with CTI250 material available.
 5)High-sensitivity (360 mW) and high-capacity (16 A) types available.
 6)Double-winding latching type available.
 7)Plug-in with test button and quick-connect terminals available.
 8)Highly functional socket available.
