Product Summary

Coil voltage: 12VDC
Contact current: 8A
Contact Voltage VAC: 380V
Contact voltage VDC: 250V
Contact Configuration: DPST-NO
Coil Resistance: 600ohm
Relay Mounting: Through Hole
SVHC (SVHC): No SVHC (20-Jun-2013)
Nom Operating Power: 240mW
External Width: 14mm
External Depth: 31mm
External Height: 11.3mm
Contact Voltage AC Nom: 380V
Contact Voltage DC Nom: 250V
Coil Current: 20mA
Coil nominal DC voltage: 12V
Coil Type: DC Monostable
Relay Type: Power
Contact Current Max: 8A

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

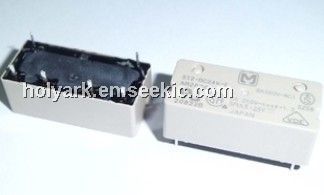

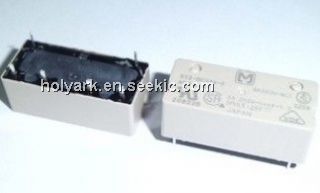

ST2-DC12V-F
ST2-DC12V-F

Panasonic Electric Works

General Purpose / Industrial Relays 8A 12VDC DPST NON-LATCHING PCB

Data Sheet

0-1: $8.00
1-25: $7.29
25-50: $6.54
50-100: $5.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ST2-10B41
ST2-10B41

Pulse

Power Transformers SPLIT BOBBIN HORZ MOUNT XFMR

Data Sheet

0-65: $5.39
65-100: $5.02
100-500: $4.28
500-1000: $3.64
ST2-12B42
ST2-12B42

Pulse

Power Transformers SPLIT BOBBIN HORZ MOUNT XFMR

Data Sheet

0-65: $5.39
65-100: $5.02
100-500: $4.28
500-1000: $3.64
ST2-16B43
ST2-16B43

Pulse

Power Transformers SPLIT BOBBIN HORZ MOUNT XFMR

Data Sheet

0-65: $5.45
65-100: $5.10
100-500: $4.37
500-1000: $3.64
ST2-1L4S4CQEJ22
ST2-1L4S4CQEJ22

APEM Components

SWITCH ROCKER MINI UNSELD

Data Sheet

1-25: $10.64
ST2-1L4S4V30BJ1-2
ST2-1L4S4V30BJ1-2

Apem

Toggle Switches DPDT ON NONE ON PCB

Data Sheet

0-1: $5.58
1-25: $4.77
25-100: $4.14
100-500: $3.75
ST2-1L5S5CQEJ3J9022
ST2-1L5S5CQEJ3J9022

APEM Components

SWITCH ROCKER MINI UNSELD

Data Sheet

1-25: $10.83
