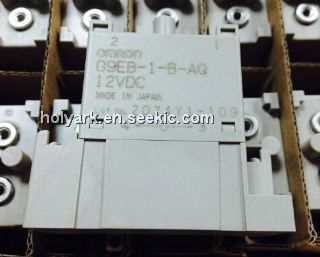

Product Summary

Contact resistance * 1: 30mΩ or less
Contact voltage drop: 0.1V or less (when the electric current 25A)
Action time: 30ms or less
Reset Time: 15ms or less
Insulation resistance * 2:
Between coil and contacts 1,000MΩ above;
Between the pole contacts with more than 1,000MΩ
Pressure:
AC2,500V 1min between coil and contacts
AC2,500V 1min between contacts with pole
Vibration:
Durable 5 ~ 200 ~ 5Hz, 0.75mm single amplitude (acceleration: 2.94 ~ 88.9m / s2)
Malfunction 5 ~ 200 ~ 5Hz, 0.75mm single amplitude (acceleration: 2.94 ~ 88.9m / s2)
Impact:
Durable 490m / s2
Malfunction 100m / s2
Mechanical life * 3:10 million times or more
Electrical life * 4:
Resistive Load: DC250V 25A 30,000 times or more
DC400V 20A 5,000 times or more
Capacitive load: DC400V 35A (surge) 70,000 times or more
Short-term carrying current:
40A (10min)
50A (5min)
The maximum cutoff current: DC250V 100A (5 times)
Overload cut: DC250V 50A (more than 50 times)
Minimum load current: 1A
Ambient temperature: -40 ~ + 85 ℃ (no icing, no condensation)
Operating humidity: 5% ~ 85% RH
