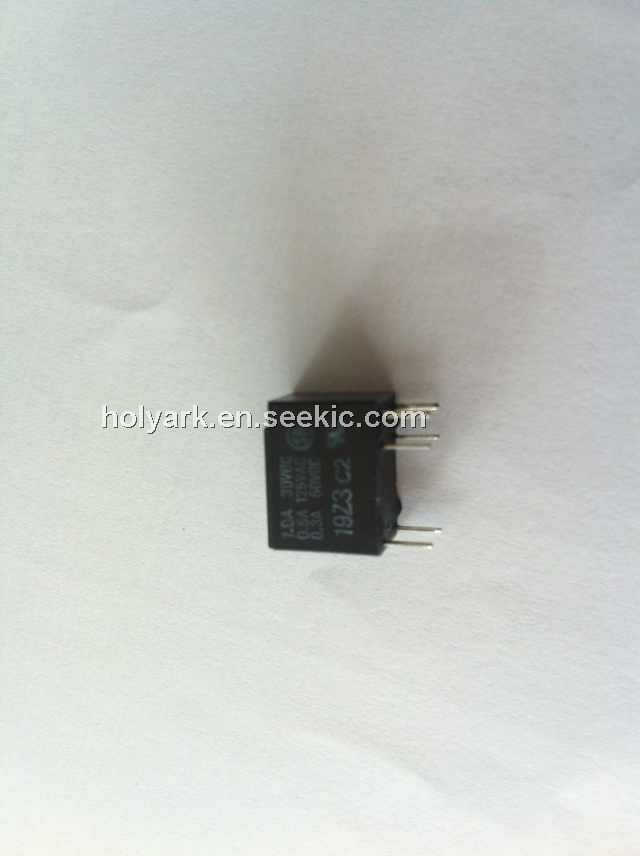

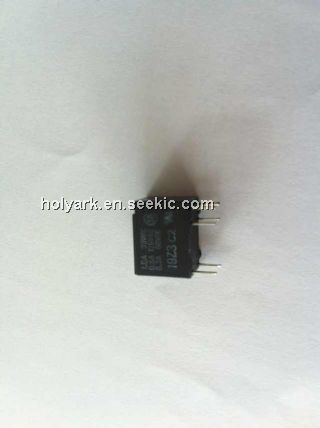

Product Summary

Type: Signal Relay
Series: G5V Series
Type: G5V-1-24VDC
Dimensions (mm): 12.5 × 7.5 × 10mm (L × W × H)
Weight: 2.2g
Contact form: 1C (SPDT)
Contact load: 0.50 A / 125 VAC, 1 A / 24 VDC
Impedance: ≤100mΩ
Current Rating: 2A
Electrical life: ≥10 Wan back
Mechanical life: ≥500 Wan back
Resistance (± 10%): 3840Ω
Coil power consumption: 150mW
Rated Voltage: DC 24V
Pull-in voltage: DC 16.8V
Release Voltage: DC 2.4V
Working temperature: -30 ℃ ~ + 70 ℃
Insulation resistance: ≥1000MΩ
Coil and contact pressure: 1500VAC / 1 min
Contacts and contact voltage: 400VAC / 1 min
