Product Summary

Standard Package : 3,000
Category: Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series -
Packaging: Tape & Reel (TR)
Number of Channels: 1
Voltage - Isolation: 3750Vrms
Current Transfer Ratio (Min): 100% @ 1mA
Current Transfer Ratio (Max): 1200% @ 1mA
Turn On / Turn Off Time (Typ): 10μs, 8μs
Rise / Fall Time (Typ): 8μs, 8μs
Input Type: AC, DC
Output Type: Transistor
Voltage - Output (Max): 80V
Current - Output / Channel: 50mA
Voltage - Forward (Vf) (Typ): 1.15V
Current - DC Forward (If) (Max): 50mA
Vce Saturation (Max): 400mV
Operating Temperature: -55°C ~ 100°C
Mounting Type: Surface Mount

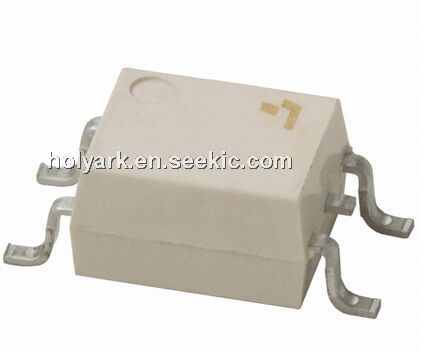

Package / Case: 6-SMD (4 Leads), Gull Wing
Supplier Device Package: 6-MFSOP, 4 Lead

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLP126
TLP126

PHOTOCOUPLER TRANS OUT 6MFSOP-4
Data Sheet
Negotiable
TLP126(F)
TLP126(F)
Toshiba
Transistor Output Optocouplers 80Vceo 3750Vrms AC input
Data Sheet
0-1: $0.45
1-10: $0.36
10-100: $0.31
100-250: $0.27
TLP126(TPR)
TLP126(TPR)

PHOTOCOUPLER TRANS OUT 6MFSOP-4
Data Sheet
Negotiable
TLP126(TPR,F)
TLP126(TPR,F)

PHOTOCOUPLER TRANS OUT 6MFSOP-4
Data Sheet
0-3000: $0.25
3000-6000: $0.24
6000-15000: $0.23
15000-30000: $0.22
30000-75000: $0.22
TLP126-TPL
TLP126-TPL
Other

Data Sheet
Negotiable
TLP126TPRF
TLP126TPRF
Toshiba
Transistor Output Optocouplers 80Vceo 3750Vrms AC input
Data Sheet
0-1: $0.52
1-10: $0.43
10-100: $0.35
100-250: $0.27
